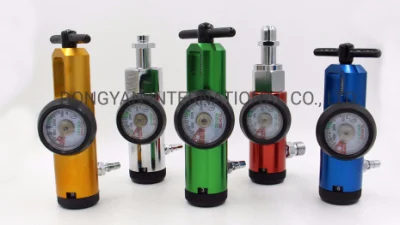

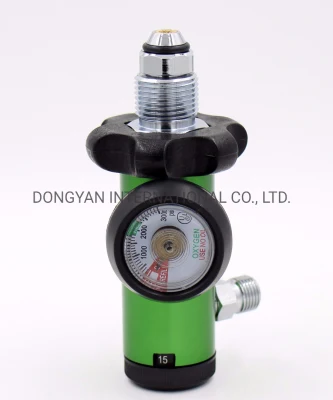

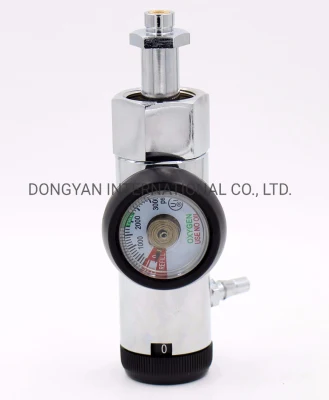

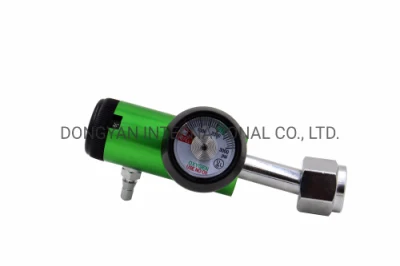

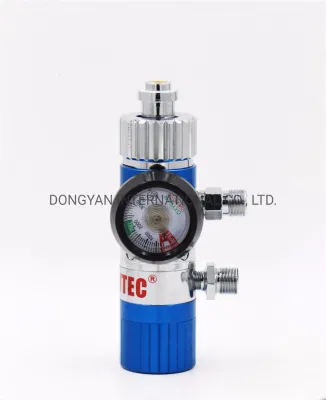

Yf-Cga540 American Style Oxygen Regulator 0-15lpm

Get high-quality Yf-Cga540 American Style Oxygen Regulator 0-15lpm from our factory. Perfect for medical use. Order now for reliable oxygen supply.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DY-1-1
Connecting Thread
Female G5/8
Gas Type
Oxygen
Output Pressure
2bar-3bar
Flowmeter Range
1L/Min-10L/15L/Min
Function
Oxygen Supply
LCD Display
No
Specification
Ce ISO13485
Transport Package
Color Box
Trademark
OEM
Origin
Jiangsu China
HS Code
9019200000
Production Capacity
20000/Month

Product Description

Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm

Yf-Cga540 American Style Oxygen Regulator 0-15lpm

Oxygen Regulator:

The flowmeter with humidifier is used in reducing gas pressure and adjusting the gas volume, which rescue patient and treat as oxygen therapy by hospital. Also may make using of other gas reduced pressure and the control flow.

Product main feature:
The product has artistic outlook, and flow control comfortable and stable.
The reductor is adjustable;The structure is unique, and the performance is reliable.
The stainless steel floater and the orange substrate flowmeter have a especially visual effect;
The international standard connect way, is suitable for all kinds of gas bottle installation.

Yf-Cga540 American Style Oxygen Regulator 0-15lpm

Range of application:

Give oxygen for first-aid or oxygen uptake for the people who are lack of oxygen.

How to use:

1.Open the valve of oxygen cylinder after connect the screw nut of air intake closely.

2.Connect the oxygen pipe to the oxygen outlet firmly.

3.Demount the humidifying cup(anti clock wise rotation),put some distilled water in (purified water or plain boiled water can also take place),the water quantity should be between the bottom and top tick mark,then tighten up the bottle cap to the humidifying cup(clockwise rotation).

4.Rotate the flow regulating valve to the rate you need (anti clockwise to up,clockwise to down,till to close),then put it to nose to use.

5.Close the valve of oxygen cylinder firstly while not using,then close the flow regulating valve until the pointer of oxygen  manometer return to zero.

Attention:

1.Make sure there is no ash on the connector and check the screw thread,then install the inhalator.

2.Make sure the flow meter is vertical to the floor and flow regulating valve is closed,then open the valve of    oxygen cylinder slowly,regulate the flow after the high pressure gauge shows the pressure of the oxygen  cylinder.

3.No drastic shock,far away with the corrosive substance,and no oil stain.

4.The set screw of the safety valve can't be rotated at random,non-professional people are forbidden         to  dismount.

5.Forbid to use the Buoy Type Oxygen Regulator to take oxygen atomization treatment.

6.Forbid to dismount by yourself.

Condition for storage:

Should be kept in the environment whose humidity is less than 90%,no corrosive gas and drafty.
Quality guarantee period

We will fix or change the oxygen inhalator within a half and a year after the day of living the company when it can't proper functioning,it should be under the condition of obeying the rule of storage and using

Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm
1 0PCS/CTN (color box)
G.W./N.W.:12/11KGS
Dimension:49.5×40×18cm

Yf-Cga540 American Style Oxygen Regulator 0-15lpm


Yf-Cga540 American Style Oxygen Regulator 0-15lpm
Yf-Cga540 American Style Oxygen Regulator 0-15lpm

Our factory was established in 2009, is a professional medical devices manufacturer , integrating research , development , design , production , sales and service . It has a strong technical force , advanced production testing methods and complete sales service. Network , with persistent pursuit , provide all- round services,
and strive to build high-quality medical devices manufacturers .

Our mail products are oxygen regulator, gas outlet , globe valve , oxygen inhaler , vacuum suction device, equipment belt , oxygensupply , secondary box, bus bar , hanging tower ,valve box and other gas engineering accessories. The products are sold to more than 30 countries around the world , have won the trust and support of our customers . Our factory passed the ISO 9001, ISO 13485, FDA, CE and class II medical device production licence .

We shall stand together with our customers to explore market , and expect a prosperous future .
