Basic Info.
Model NO.
O2A010
Gas
O2
Type
Electrochemical Gas Analyzer
Function
O2 Testing
Net Weight
0.3kgs
Gross Weight
0.35kgs
Battery Power
0.16W
Volt
DC 5V 2000mAh
Package
Color Box
Charging Time
2 Hours
Continuous Working Time
48 Hours
Lithium Battery Life
>2 Year
Transport Package
Each Product to Do a Single Color Box, 5 Color Box
Specification
166*74*32mm
Origin
China
HS Code
8419909000
Production Capacity
70000pieces/Year
Product Description

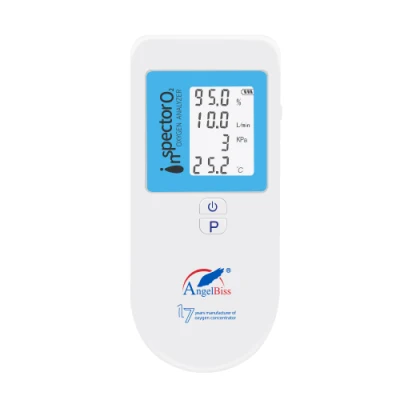

Higher Accuracy Oxygen Purity Analyzer
The O2A010 oxygen analyzer is capable of measuring oxygen purity of 20%-95.9% in the range of 1-10LPM. One-button start. Oxygen purity, flow rate, outlet pressure and oxygen temperature are all displayed on the unit's 2.2-inch LCD screen. Fast charging via USB interface, a single charge can run continuously for 48 hours. It is one of the most fully functional and energy saving oxygen analyzer on the market, which is very suitable for detecting oxygen devices.
Features

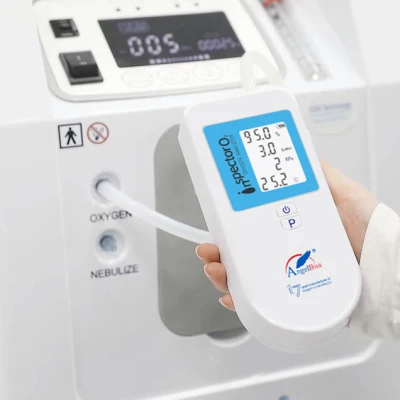

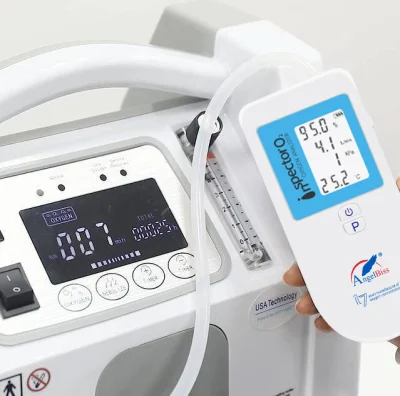

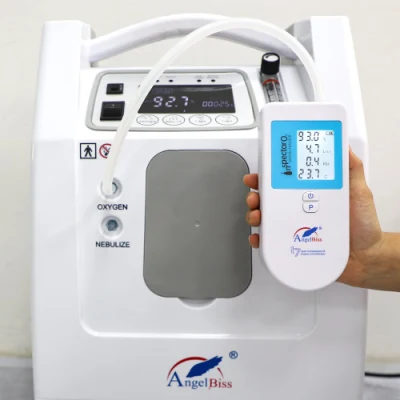

It's a personal portable oxygen content measurement device, measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel. It has a USB interface, not limited by geographical location and it can be reused. Easy to use, only need to connect the instrument and oxygen interface.In addition, the oxygen analyzer can be applied to various types of oxygen concentrators, such as Yuwell, Philips, Omron,Invacare, Haigui Turtle,MED JOY, SYSMED, AERTI,JU Mao, ect.
Product Specifications
Testing and Packaging
AngelBiss implements strict quality control and product testing, and adheres to the principle of quality first.
Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.
Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.
AngelBiss all products are complied with the USA Technology quality standards and the best performance at its electronic life span. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe. AngelBiss ensure your safety in using its products, granting better use services to its distributor fans.
The O2A010 oxygen analyzer is capable of measuring oxygen purity of 20%-95.9% in the range of 1-10LPM. One-button start. Oxygen purity, flow rate, outlet pressure and oxygen temperature are all displayed on the unit's 2.2-inch LCD screen. Fast charging via USB interface, a single charge can run continuously for 48 hours. It is one of the most fully functional and energy saving oxygen analyzer on the market, which is very suitable for detecting oxygen devices.
Features
- lithium battery
- USB interface
- The accuracy is ±1.8%
- The measured flow range is between 0-10LPM
- Measured concentration range 20.0% to 95.9%
- Oxygen concentration and flow can be displayed
- Measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel
It's a personal portable oxygen content measurement device, measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel. It has a USB interface, not limited by geographical location and it can be reused. Easy to use, only need to connect the instrument and oxygen interface.In addition, the oxygen analyzer can be applied to various types of oxygen concentrators, such as Yuwell, Philips, Omron,Invacare, Haigui Turtle,MED JOY, SYSMED, AERTI,JU Mao, ect.
Product Specifications
Item | Oxygen Purity Analyzer |
Gas Detected | O2 (Oxygen) |
Concentration indication Range | 20.0% to 95.9% |
Measurement Accuracy | ±1.8% F.S |
Operating Ambient Temperature | 5~40 ºC |
Response Time | ≤10S |
Operating Temperature | -20ºC~50ºC |
Dimensions | 166*74*32mm |
Weight | 300g |
Max Flow | 10LPM |
Testing and Packaging
AngelBiss implements strict quality control and product testing, and adheres to the principle of quality first.
Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.
Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.
AngelBiss all products are complied with the USA Technology quality standards and the best performance at its electronic life span. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe. AngelBiss ensure your safety in using its products, granting better use services to its distributor fans.
