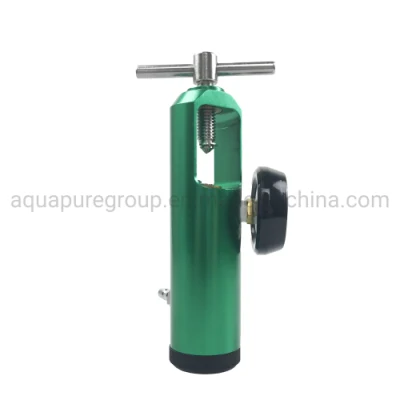

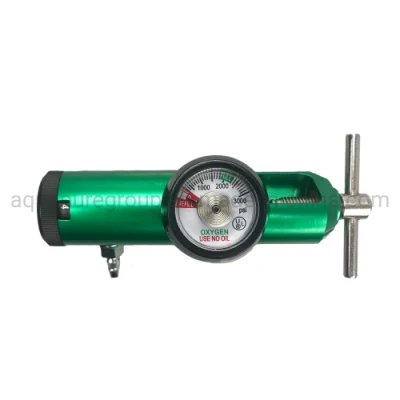

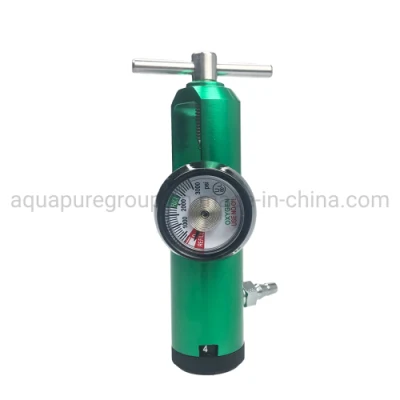

Gas Medical Oxygen Pressure Regulator with Humidifier

Get reliable Gas Medical Oxygen Pressure Regulator with Humidifier from our factory. High quality and durability guaranteed. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CGA 870
Size
Length 143mm, Dia. 34mm
Regulate Range of Flow
12levels 0-4 L/Min
Properties
Medical Materials & Accessories
Net Weight
0.34kg
Instrument Classification
Class I
Transport Package
EPE(Expand Aple Poly Ephylene) with Carton Box
Specification
Length 143mm, Dia. 34mm
Trademark
AQUAPURE
Origin
Shenzhen, China
Production Capacity
10, 000, 000PCS/Year

Product Description

Medical Gauge Flow Oxygen Regulator for Large O2 Tanks

Gas Medical Oxygen Pressure Regulator with Humidifier

TECHNICAL SPECIFICATION

Application

For use on MEDICAL oxygen tanks

Regulate Range of flow

12levels 0-4 L/min:

0,1/32,1/16,1/8,1/4,1/2, ¾, 1, 1.5, 2, 3, 4 L/min

Maximum Pressure

3000 PSI

Oxygen Tank Connector

Swivel yoke

Oxygenoutlet connector

Barb Outlet

Size:

Length 143mm, Dia. 34mm

Net Weight

0.34kg

Package Size L x W x H

195*70*65mm


Gas Medical Oxygen Pressure Regulator with Humidifier


1. Different oxygen flow rate available to ozone generators

2. Best match with YOUMO AQUAPURE ozone products

3. easy to set up small oxygen flow rate: 1/32, 1/16,......

4. accurate and Long life

5. Reasonable price

Gas Medical Oxygen Pressure Regulator with Humidifier

Features:

1. High Quality
2. 0-4Lpm with 12 levels of flow rate
3. CGA standard
4. Brass valve with Aluminum body



 About Oxygen Regulator

The Oxygen Regulator is designed to reduce the pressure and control the flow of oxygen from a oxygen cylinder or tank.

An oxygen flow control regulator is a pressure-reducing device, which lowers the oxygen pressure from a cylinder to levels, which can be safely used by the patient. Oxygen Regulators are intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions.



This oxygen regulator uses an advanced, patented Intelliflo disc to regulate oxygen flow down to 1/32 LPM with very tight tolerances. Featuring a brass core for maximum safety and skidproof knob and body that won't peel, flake or wear off. All metal anodized aluminum construction is more durable and will not rust, plus the gauge protector helps prevent damage.




Paking& Shipping

EPE(Expand aple poly ephylene) with carton box


Gas Medical Oxygen Pressure Regulator with Humidifier


Related products
Gas Medical Oxygen Pressure Regulator with Humidifier
AQUAPURE

Gas Medical Oxygen Pressure Regulator with Humidifier
Gas Medical Oxygen Pressure Regulator with Humidifier
Gas Medical Oxygen Pressure Regulator with Humidifier


FAQ

Q: What's your advantage? Why we choose you?
1>. High Quality products and proffesional
2>. over 10 years experience, ODM, OEM available
3>. good price, fast shipments

Q: What's the Payment?
1> T/T
2> Credit card, Paypal
3> Western Union, L/C

Q: Do you make your own products or just a trading company?
1> we make our own products
2> we design them and make them
3> we offer ODM,OEM services

Q: How can I get some samples?
Just leave messages or send email to us , we will contact you within 24 hours .

Q: What is your warrantty?
For all the standards products, we offer >1 year warrant
