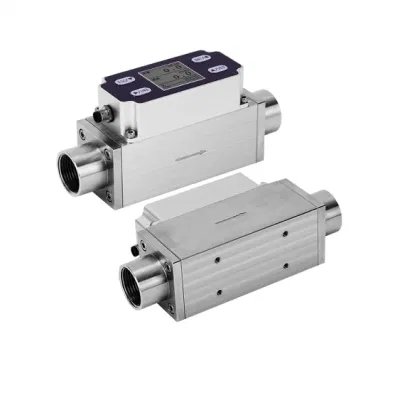

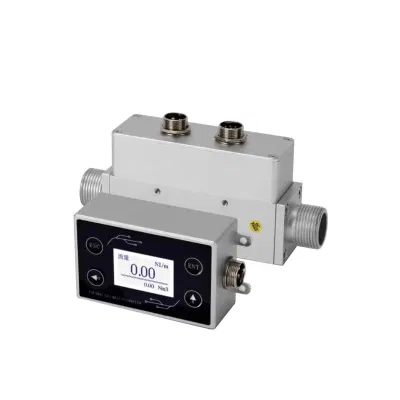

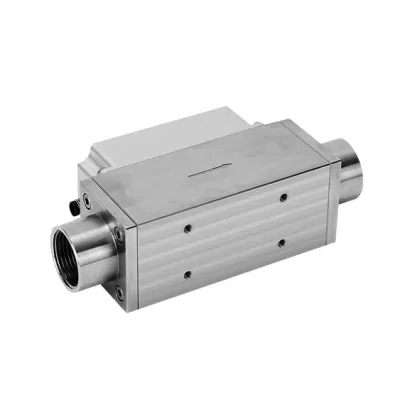

Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meter

Our factory offers high-quality Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meters. Shop now for accurate and reliable flow measurement.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Features
  • Product Parameters
  • Outline Dimension
  • Selection Table
  • Company Profile
Overview

Basic Info.

Model NO.
HG-TMFM-2000 Micro Thermal Gas Mass Flow Meter
Main Application
Nature Gas, Corrosive Liquid/Gas, Various Gases (Except The Acetylene)
Size
DN5-10
Sensor
G 3/8" ,G 1/2" , G 3/4"
Application
Industrial Production
Type
Digital Micro Gas Mass Flow Meter
Measuring Media
Gas
Measuring Principle
Digital Micro Gas Mass Flow Meter
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, RoHS, ISO
Line Size
DN5-20
Working Temperature
-10-60 Deg.C
Working Pressure
0.8MPa
Flow Units
Nm3/H, Nm3/Min, L/H, L/Min, T/H, T/Min, Kg/H or Kg
Power Supply
DC12-24V
Protection Level
IP 65 (Integrated Type)
Signal Output
RS 485
Display Mode
LCD Display
Connection
Threaded Connection
Response Time
50-1000ms
Model
Hg-Tmfm-2000
Keywords
Digital Micro Gas Mass Flow Meter
Power Consumption
<0.85W
Housing Material
PC
Wetted Material
6061 Aluminum Alloy
Transport Package
2kg
Specification
15*15*20cm
Trademark
Siko Instruments
Origin
China
HS Code
9026100000
Production Capacity
999 Units / Weeks

Packaging & Delivery

Package Size
25.00cm * 15.00cm * 15.00cm
Package Gross Weight
2.000kg

Product Description

Digital 4-20mA RS485 Micro Propane Oxygen Co2 Thermal Mass Flow Meter


   HG-TMFM-2000 micro gas mass flow meters is specially designed for the measurement and process control of various types of small flow gases. This series of sensors are made with advanced micro-electro-mechanical system flow sensing chips, and are suitable for all types of clean gases.
   The Unique packaging technology makes it suitable for a wide range of pipe sizes, low cost, easy installation, no temperature and pressure compensation, and can replace traditional volumetric or differential pressure flow meters.


Features
01  Direct mass flow measurement of gas with actual gas calibration.
02  Wide measuring range 0.5 Nm3/s - 100 Nm/s for gas.
03.   No need temperature and pressure compensation with accurate measurement.
04.  No moving parts with good vibration resistance and long service life to provide user easy installation and    free from maintenance.
05.  Opto-isolated outputs with digital design configuring with RS 485 or Hart interface to realize factory       automation and integration.
06.  OLED display with rate, total, mass flow, velocity etc display
07.  Tracking of overall gas consumption over a turndown ratio of at least 100:1
08.  Low pressure drop, with excellent low end sensitivity

Product Parameters

Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meter



Outline Dimension

Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meter


Selection Table


Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow MeterDigital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow MeterDigital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meter

Company Profile

Digital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow MeterDigital 4-20mA RS485 Micro Propane Oxygen CO2 Thermal Mass Flow Meter
