Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators

Shop for CGA540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators. As a factory, we provide quality products at competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Warranty
1 Year
Feature
Different International Standard
Sample
Availble
Certificate
ISO13485
MOQ
50 PCS
Packing
Cartoon Packing
Location
Shanghai City
Logo
Customized
OEM
Availble
Outlets
Gas Connector
Purpose
Medical Gas Equipment
Medical Gas Terminal Installing
Wall-Mounted Installing
Color
White,Red and Yellow
Transport Package
Cartoon Packing
Specification
0.12CBM/100pcs
Trademark
ZENVA
Origin
China
HS Code
9032810000
Production Capacity
10000/ Month

Product Description

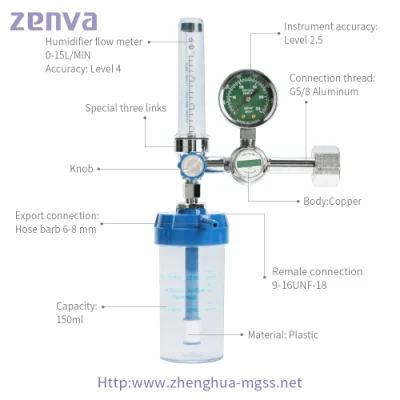

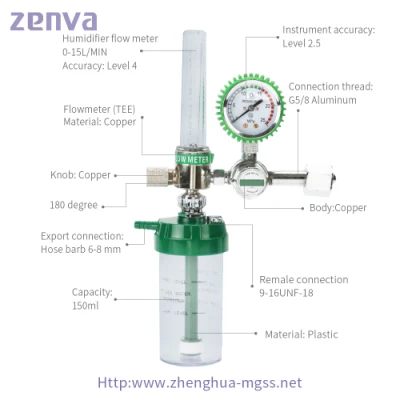

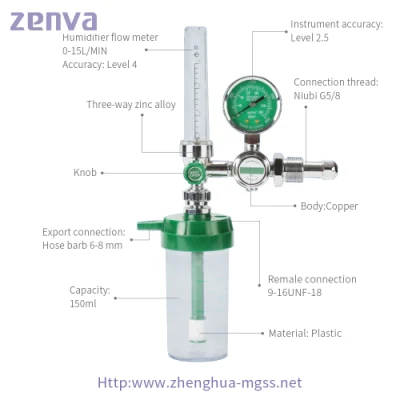

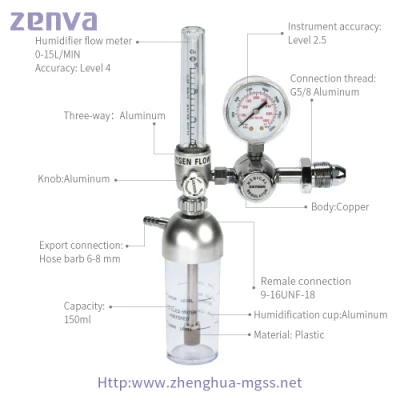

Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators


Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators

Gas flow meter specifications

Suction system (passive) is divided into three major components; negative regulator part, the dirt collection part suction tube section.

Negative regulator part includes: Vacuum gauge, control valve, plug valve seepage, etc, which is the body part of inhaler, requires vacuum gauge indicates accurate, adjustable hand wheel adjustment freely, not micro-seepage drain valve.

Dirt collection part mainly includes: Security set liquid bottle, and anti-suck back device ,requirements: suction tubes are sealing, anti-suck back devices are sensitive and reliable.



Gas type

oxygen

Configuration

single flowmeter-- oxygen flowmeter with humidifier

Twin : two flowmeters mounted on a single back bar

Gas inlet types

1) gas -specific inlet   probe conforming to BS 5682

2) 1/8'' NPT female-threadde inlet

3) Bullnose nipple with 3/8'' BSPNUT.

4) Other country-specific direct and remote-fitting configurations are available- contact the office.

Gas outlet types

1) body has female thread -use BMI 'universal'tubing nipple

2) body has a 9/16'' UNFmale thread -use tubing nipple(oxygen)

Advantage

Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select

Input pressure

15Mpa

Oxygen flow range

1-10L/min 1-15L/min

Pressure reducing range

2.0-3.0mpa

Relief valve pressure range

3.5±0.5mpa

Output connection screw thread

8mm

Input connection screw thread

G5/8-14-RH,CGA540-RH,G3/4-14-RH

Output pressure

0.2-0.3Mpa

Flow rate

1-10L/min ,1-15L/min;

Humidifier capacity

170ml

Valve materrial

brass

material of PC bottle

pvb

Structure

piston type

Delivery Detail

15 days-- oxygen flow meter with humidifier

Dimension

20PCS/CTN (color box) or other

G.W./N.W

20/19kg

Packing

Each sent with plastic bag then in inner box 20 sets/ctn

Maintenance checks

three-monthly leak check

annual inspection

Environmental conditions

store/operate between 5 and 25 degree

protect exposed o-rings from light

 Quality guarantee period

2 years-- oxygen flow meter with humidifier





Company Information:



Shanghai Zhenghua Medical Equipment Co., Ltd (Shanghai ZhenHua Medical Equipment Factory) is a professional manufacturer of all types of medical equipment,Our subsidiary company "Shanghai Etar Mechanical And Electrical Technology Co.,Ltd" is specifical for exporting business .Our main products include medical pendant surgical pendant, ICU pendant, medical bed head unit, multi-column pendant series, health care, medical gas supply system, and related products. Our company was established in 1993, and we have many years of history in the medical equipment industry. Located in Shanghai, we enjoy convenient water, land and air transportation.,

Through the efforts of our entire staff these years, we have become a strong and professional medical equipment manufacturer. We have continuously tried to improve product quality, introducing into German advanced technology. Moreover, we have excellent engineers and technicians giving our company good technical capabilities.
Our products have already exported to Europe, America, Middle-East, and so on 20 other countries and regions. Our company has always focused on research, development and innovation, we insist the principle innovate makes good future which makes our company to have a good progress. Our company adhere to reasonable prices, efficient production time and good after-sales service as our tenet in order to supply our customer first-rank product
  Welcome to our company to make any cooperation .We hope to cooperate with more customers for mutual development and benefits.Hope we can establish the good business and make a good future with you
Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators

Our factory:
Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators
our certification:
Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators



 our team:
Cga540 Oxygen Regulator Medical Flow Meter Oxygen Flow RegulatorsCga540 Oxygen Regulator Medical Flow Meter Oxygen Flow RegulatorsCga540 Oxygen Regulator Medical Flow Meter Oxygen Flow Regulators
